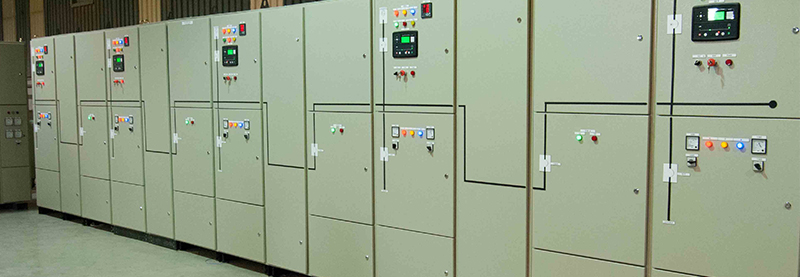

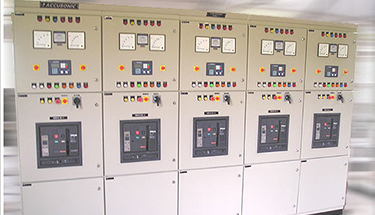

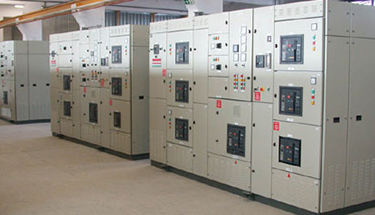

DG Synchronizing & ATS Panel

We are actively engaged in manufacturing and export of high performance DG Synchronization & ATS Panel Panel which comes complete with Controlling & Protection Relays capable of synchronizing of more than one DG sets / with Mains & DG and with necessary protections.

The offered product is precisely designed and manufactured by utilizing optimum quality raw material and sophisticated technology. Furthermore, we offer this DG Synchronization & ATS panel in various technical specifications at affordable prices.

Applications :

Control, Synchronizing, Load Sharing/Load management of DG Sets through control relay with aor without PLC based cum manual
System 3 Phase, 3 or 4 wire, 50Hz
Short Time Current 50KA for 1Sec, 105KA peak
Form of Sepration Upto 3B/4B (Optional Type 5)
Type Tested for Short Time Current withstand Temperature Rise Degree of Protection
Bus Bar System Interleaved above 1600A
Feeder Configuration Semi Drowout or Fix Type
